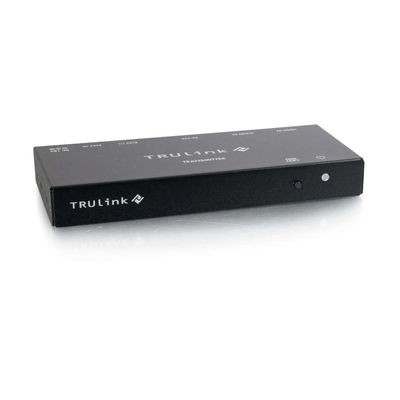

The VGA+3.5mm Audio+RS232 over Cat5 Box Transmitter, when used in conjunction with a receiver (29371, 29373, 29376 or 29379 - NOT INCLUDED), allows you to extend a VGA signal over two Cat5/Cat5e/Cat6 unshielded twisted pair cables up to 300ft/500ft (depending on receiver selected) without signal degradation at 1920x1200 or 1920x1080 resolutions. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. The transmitter and receiver come in either wall plate or box form factors and are interoperable allowing you to choose the form factors that are best suited for the application. In addition, this solution utilizes phantom power providing you the flexibility to power at either the transmitter or receiver end.

The EDID copy feature ensures compatibility with any monitor. Built-In power surge protection and high ground loop immunity ensure high performance signal extension.

The RS232 serial port supports full-duplex data communication at 230Kbps and is fully compatible with all RS232 protocols. Point-to-point or multi-drop data communication is supported.

*Longer distances can be achieved at lower resolutions

Input:One HD15 Female, one 3.5mm Female and one DB9 Female
Output:Two RJ45 Female
